UBOCELL SOFC “Demonstration Kit”

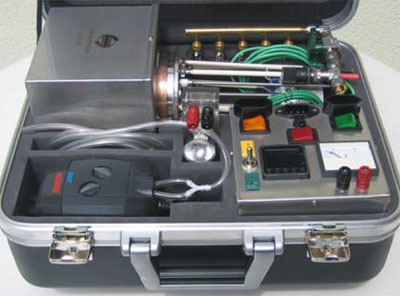

Packed in a trolley case for easy transport including: UBOCELL SOFC Mini Stack, with connecting tubes for H2 and air, power output conductors, heating cartridges for 110 or 220 VAC, two K-type thermocouples for system and stack temperature control, UBOCELL SOFC Control Box, metal hydride H2 storage system with regulating and shut-off valves, air pump (110 or 220 VAC), set of three 20 W demonstration lamps and connecting hoses and cables.
Price: CHF 11,900 (≈ EUR 11,000 ≈ USD 13,000)
Technical Data
| Dimensions L x W x H | 60 mm x 60mm x 40mm (2.37" x 2.37" x 1.58") |
| Number of cells: | 16 |
| Performance (700°C): | OCV ≈ 17 V, N = 80 W at 12 V for H2 and air |
| Type of cell: | 0.4 mm anode-supported, anodes reduced before stack assembly |
| Cell material: | Anode. Ni-Cermet, electrolyte: ZrO, cathode: LSM |
| Bipolar and end plates: | 1 mm Crofer 22, with etched flow fields |
| TC center plate: | 4 mm Crofer 22 for placement of one thermocouple near stack center |
| Compression plates: | 4 mm stainless steel: 316L or 1.4305 |
| Electrical insulation: | 1 mm Al2O3 |
| Gas supplies: | H2 and air supply ports on rear compression plate. |
| Gas exhausts: | Anode and cathode exhaust ports on front compression plate. |
| Air flow connector: | Female connecters with matching joints for welding to 5 mm ID tubing |
| H2 flow connector: | Male connecters with matching joints for welding to 4 mm OD tubing |
| Electrical connectors: | End plate connecting lashes with 3 mm boring |
| Stack mounting: | Two tapped (metric 4 mm thread) holes in front compression plate, |
| Start-up time: | 60 minutes inside furnace |
| Endurance: | More than 100 hours and more than 20 cycles |
Lead time: |
2 months |
Typical performance of the UBOCELL SOFC Mini Stack at 700°C
